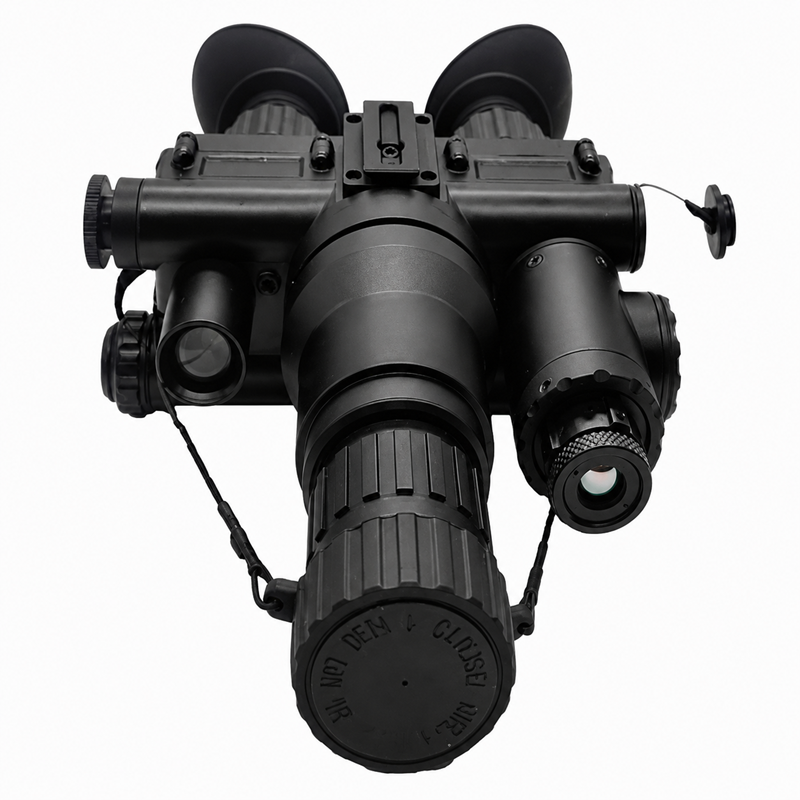

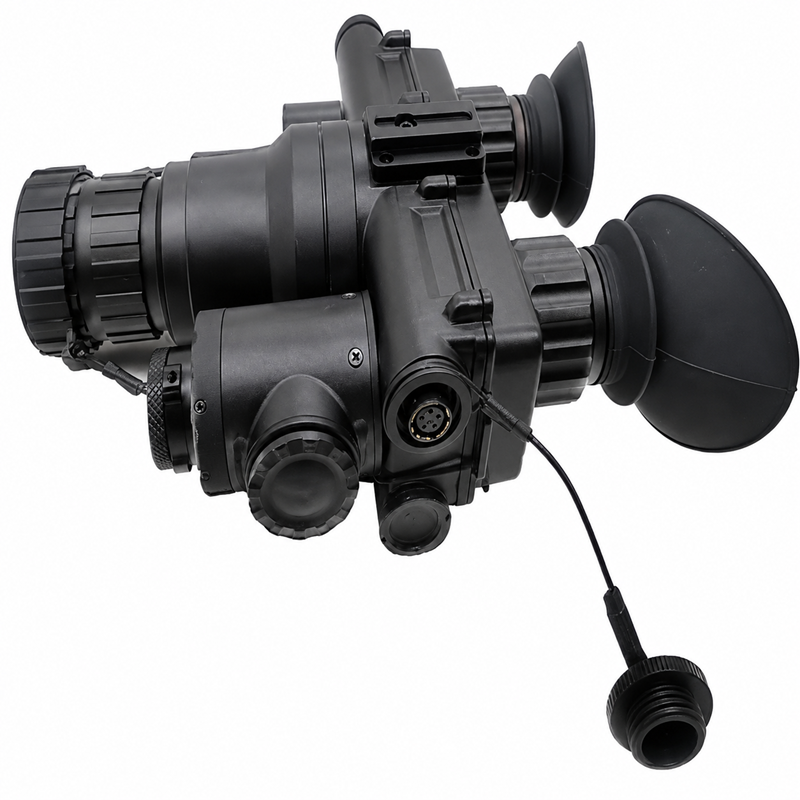

Nora NVG-NH9X Head-Mounted Gen 2/Gen 3 Dual-Eye Monocular Thermal Fusion Night Vision Goggles
-
Product Description:
The Nora NVG-NH9X multifunction low-light night vision device is a newly developed high-performance electro-optical imaging system based on advanced photoelectric technology. It is equipped with high-performance Gen 2 / Gen 3 image intensifier tubes, featuring excellent performance, compact size, lightweight design, and clear imaging quality. The device supports adjustable interpupillary distance and allows variable magnification through interchangeable objective lenses or the use of external magnifiers.
The latest upgraded version integrates a thermal imaging module, enabling dual-spectrum fusion of thermal imaging and low-light imaging. This thermal fusion technology enhances target detection and recognition in complete darkness by combining the strengths of both imaging systems, significantly improving night-time operational capability.
The device includes a built-in infrared illuminator, IR auxiliary light, and automatic bright light protection system, effectively safeguarding the image intensifier tube under strong light conditions and improving operational stability and service life.
With strong practicality and wide applicability, the NVG-NH9X is suitable for a variety of scenarios, including night patrol, security surveillance, search and rescue operations, outdoor exploration, and professional tactical applications. It is a high-end night vision system that combines versatility, reliability, and advanced imaging performance.
Technical Specifications
Model: NVG-NH9X NVG-NH9X Image Intensifier Level Gen 2 Gen 3 Magnification 1X 1X Resolution (lp/mm) 58–64 64–72 Photocathode Type S25 GaAs Signal-to-Noise Ratio (dB) 18–24 25–30 Optical Sensitivity (μA/lm) 600–800 800–1000 Mean Time Between Failures (hours) 10,000 10,000 Field of View (°) 42 ± 3 42 ± 3 Observation Distance (m) 180–220 250–300 Interpupillary Adjustment Range 65 ± 5 mm 65 ± 5 mm Diopter Adjustment Range -1 -1 Lens System F1.2, 25mm F1.2, 25mm Optical Coating Multi-layer broadband vacuum ion anti-reflection coating Same Objective Focus Range 0.25 m – ∞ 0.25 m – ∞ Automatic Bright Light Protection High-sensitivity, ultra-fast, wide-band detection Same Flip Detection Fully solid-state non-contact attitude recognition Same Dimensions (mm, without eyecup) 147 × 129 × 55 147 × 129 × 55 Housing Material Aerospace-grade aluminum alloy Same Power Supply Voltage 2.6–4.2V 2.6–4.2V Battery Type 2× AA batteries & external power supply Same IR Illuminator Wavelength 850 nm 850 nm IR “Anti-Red Glow” Wavelength 808 nm 808 nm Continuous Working Time 80h (IR off) / 40h (IR on) Same Operating Temperature -40°C to +50°C -40°C to +50°C Relative Humidity 5%–98% 5%–98% Waterproof/Dustproof Rating IP65 (IP67 optional) IP65 (IP67 optional) Thermal Imaging Module Specifications No. Item Specification 1 Sensor Type Uncooled long-wave infrared thermal detector 2 Detector Resolution 384 × 288 3 Wavelength Range 8–12 μm 4 Image Modes White hot / Black hot / Green / Red / Edge outline 5 Weight (thermal fusion version) 497 g (without battery)
