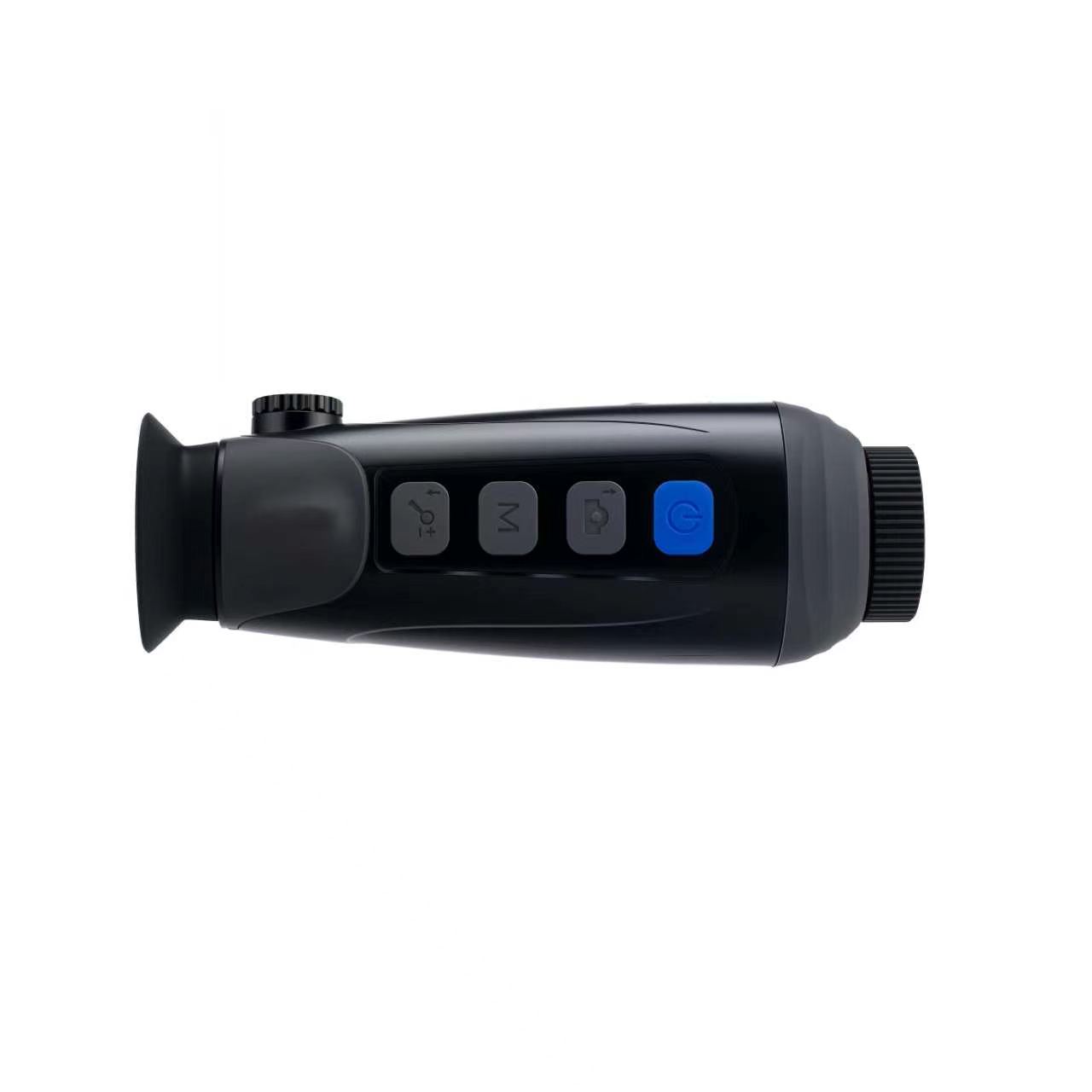

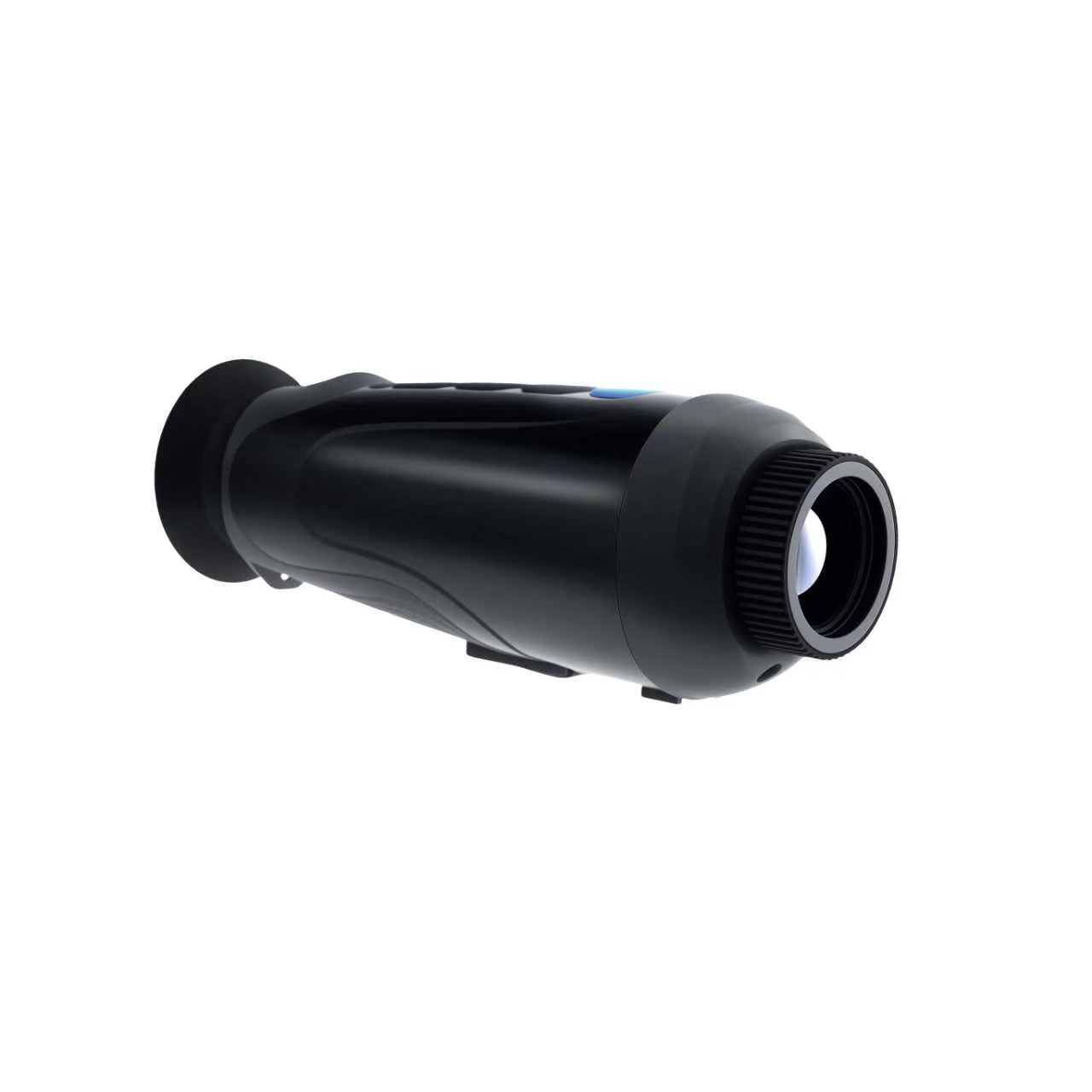

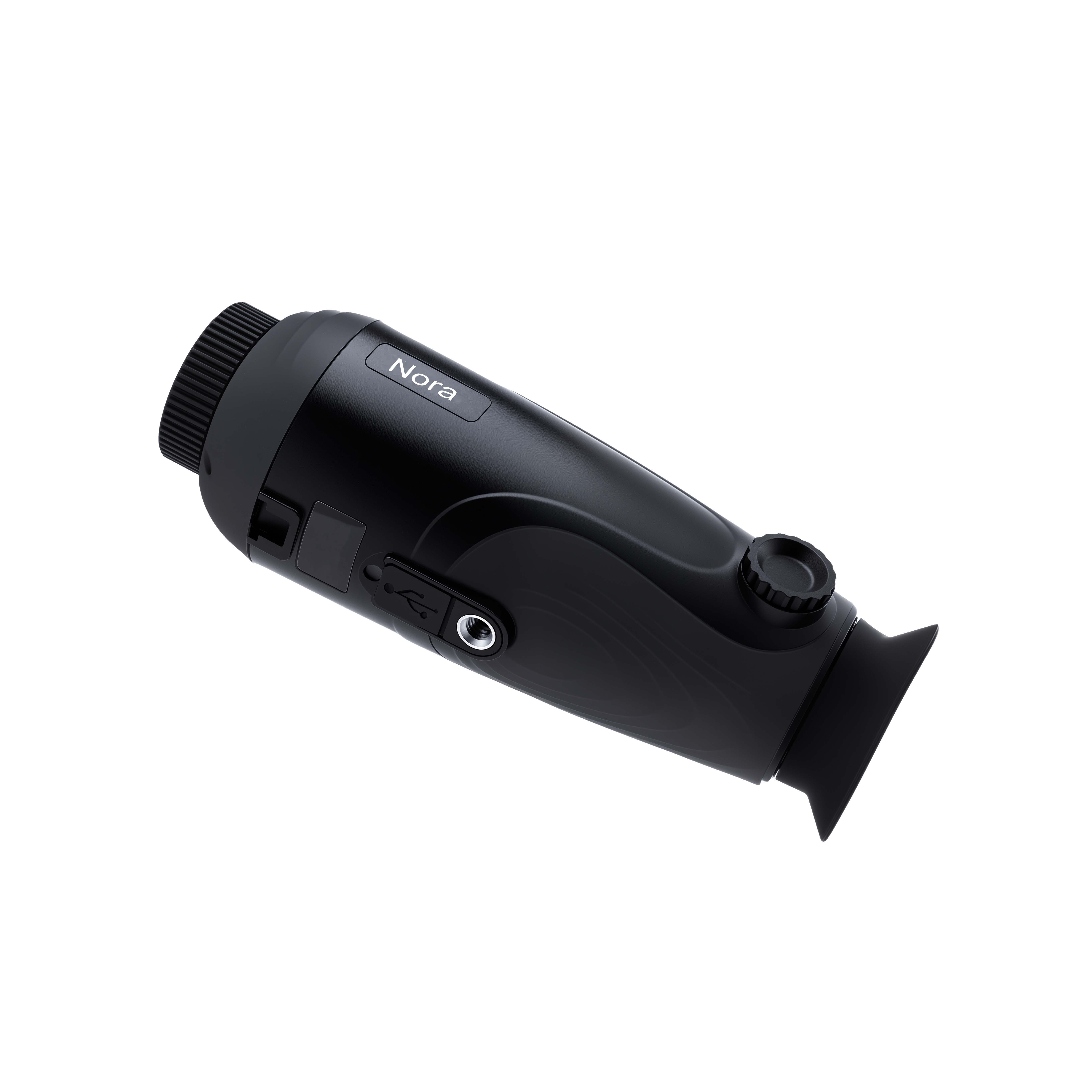

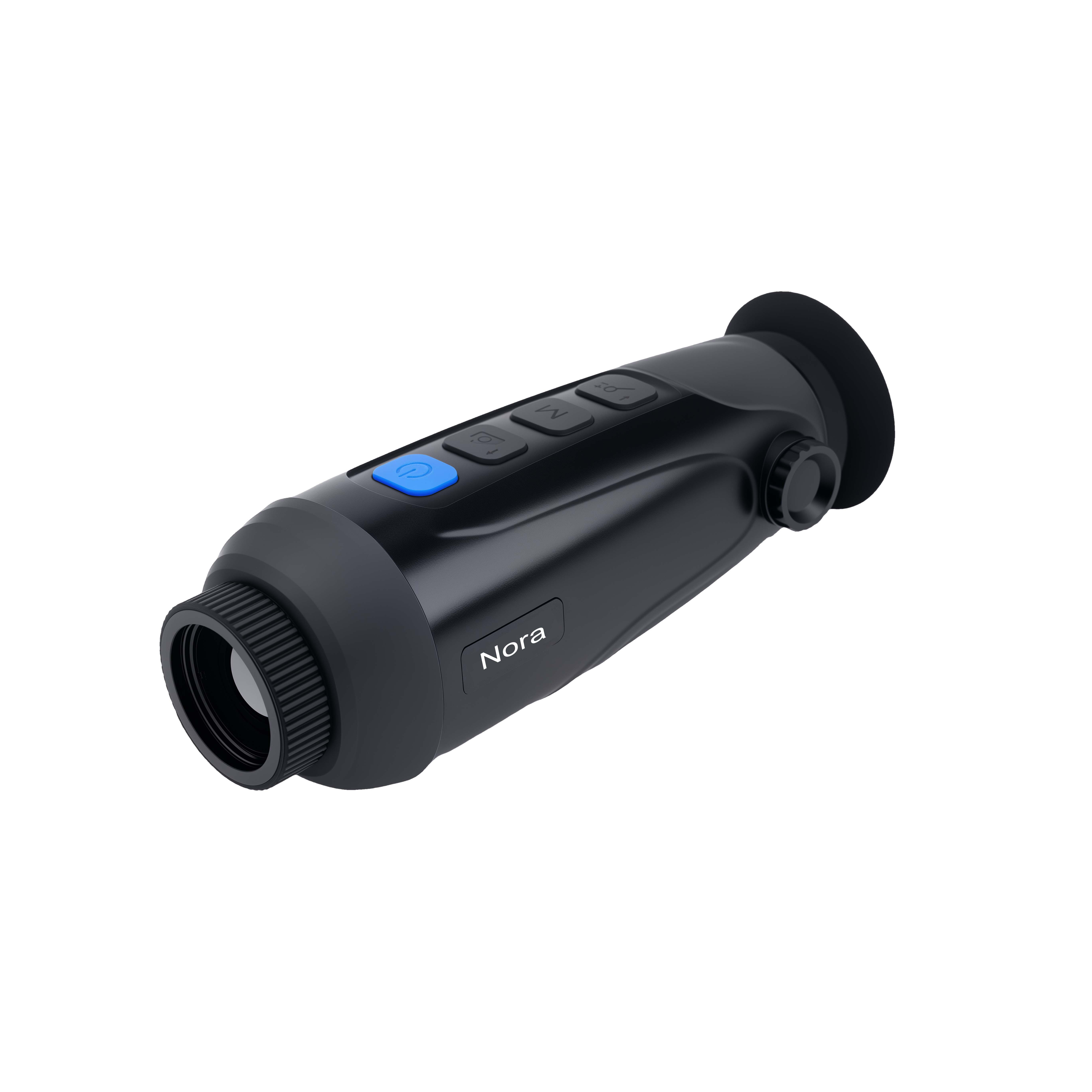

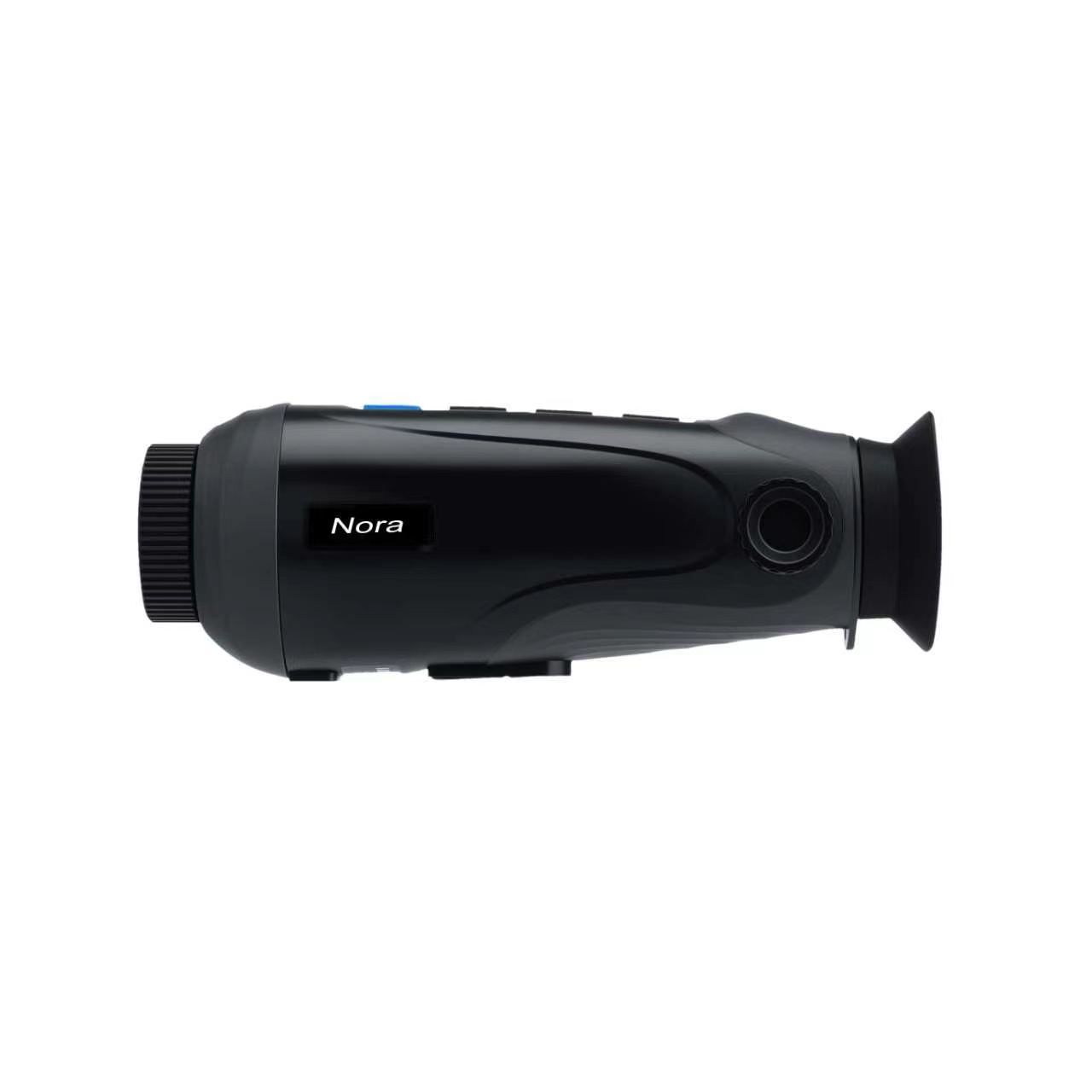

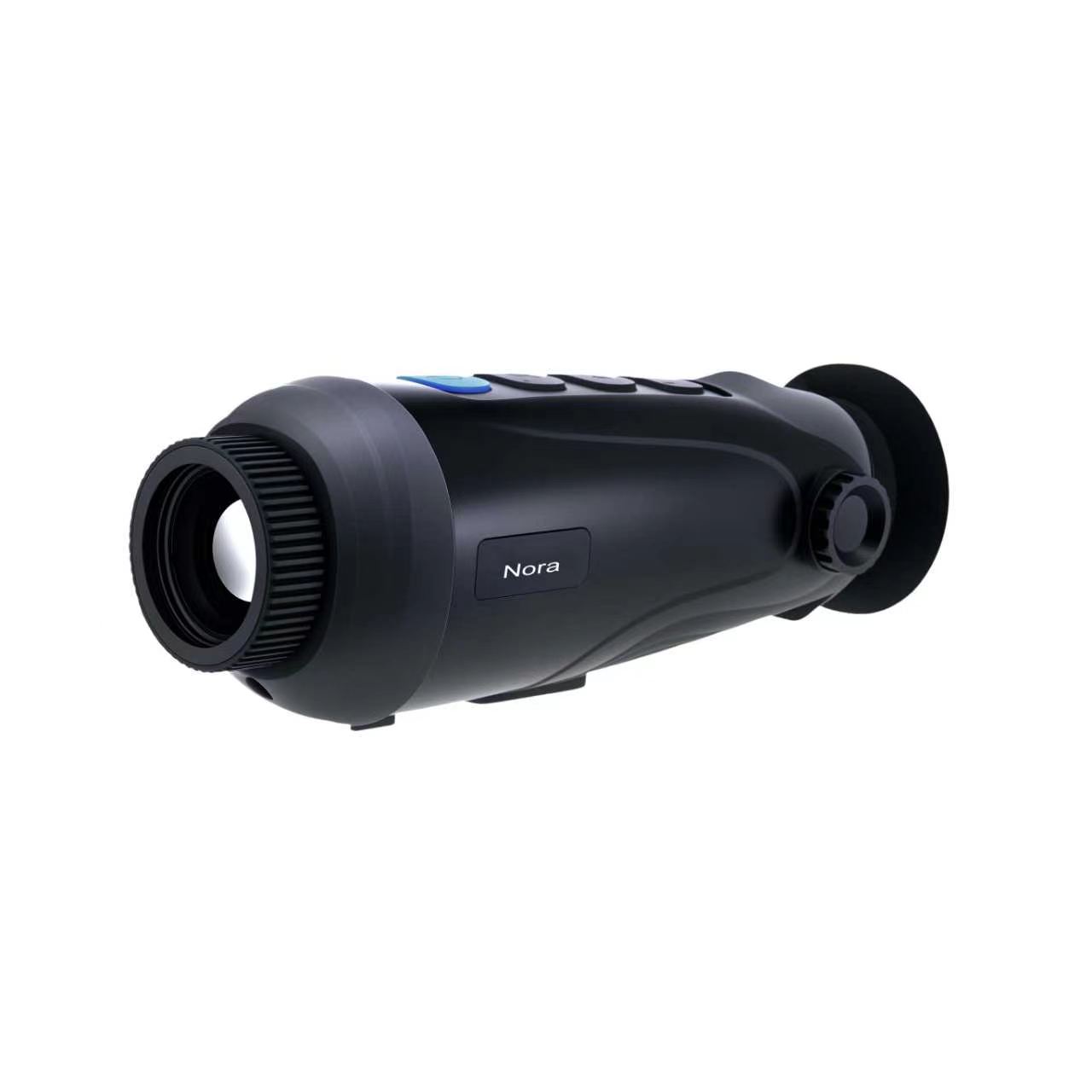

S-325 High-Performance Handheld Thermal Imaging Monocular
-
Product Description
The Nora S Series is a high-performance line of thermal imaging devices designed for hunting, law enforcement, outdoor exploration, and security applications. Equipped with Nora’s newly developed infrared detector and patented image processing technology, the S-325 delivers exceptionally clear and detailed thermal imaging in all conditions.
It features advanced functions including photo and video recording, smooth digital zoom, false color palette adjustment, approximate distance ranging, and picture-in-picture (PIP) mode. Multiple scene modes allow users to customize image settings for optimal viewing in different environments.
Built for reliability in harsh conditions, the S-325 includes a built-in laser pointer and illuminator for enhanced target acquisition and situational awareness. It offers flexible lens options (25mm, 35mm, or 50mm) and a high-resolution 640×480 display with a 17μm detector pitch, ensuring sharp imaging performance and excellent thermal sensitivity.
Main features：
1. New self-developed high-sensitivity infrared metal detector
2. Adaptive filtering algorithm for clear images in complex environments
3. Built-in laser pointer for locating targets up to 1200 meters away
4. Differential buttons for easy operation in complete darkness
5. App connected via WiFi for remote control, real-time image and video transmission
6. Designed to operate in extreme environmental conditions, with IP66 protection
Application scope:
personal security, fire search, security investigation, maritime navigation, hunting, law enforcement, search and rescue, reconnaissance of enemy situation, terrain, target determination, observation of shooting effect, etc.
Technical Specifications
Model Type Nora S-325 Sensor Sensor Type VOx Uncooled Sensor Resolution 384×288 Pixel Pitch 12μm NETD ≤25mk Frame Frequency 50Hz Optics Objective lens 25mm Angle of View 10.5°×7.9° Continuous Digital Zoom 2.3X~9.2X Eye Relief 13mm Dioptre of Eyepiece -7D~+2D Display Display Type OLED Resolution 640*480 Palettes White Hot/Black Hot/Ironbow/Glowbow/Sepia/
Red Hot/Green HotDetection Distance Distance（1.8m） 1200m Video Recorder Video/Photo Resolution 640*480 Video/Photo Format avi/jpg Built-in Memory 32GB WIFI Wireless Standard 802.11b/g/n Frequency 2.4GHz Connection Range ≤10m Power Supply Output Voltage 3~4.2V Battery Type 18650 Battery（Built-in) Capacity 3200mAh Operating Time ≥8hrs. External Power Voltage 5V Charging Hours ≈4hrs Charging Temperature 0~45℃ Physical Characteristics Weight 355g Length 171mm Environmental Characteristics Degree of Protection, IP code IP67 Operating Temperature -25℃～+50℃ Storage Temperature -40℃～+60℃
