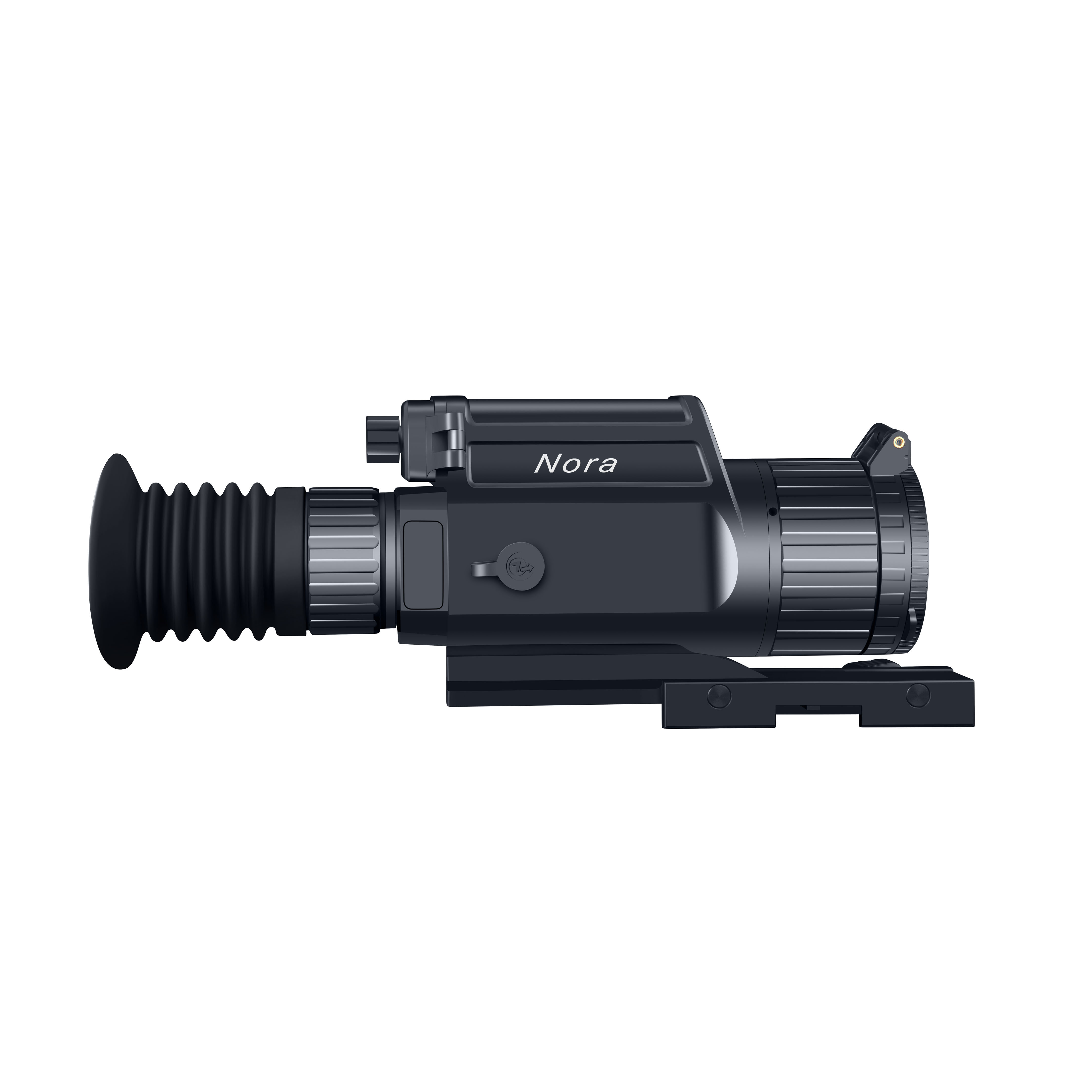

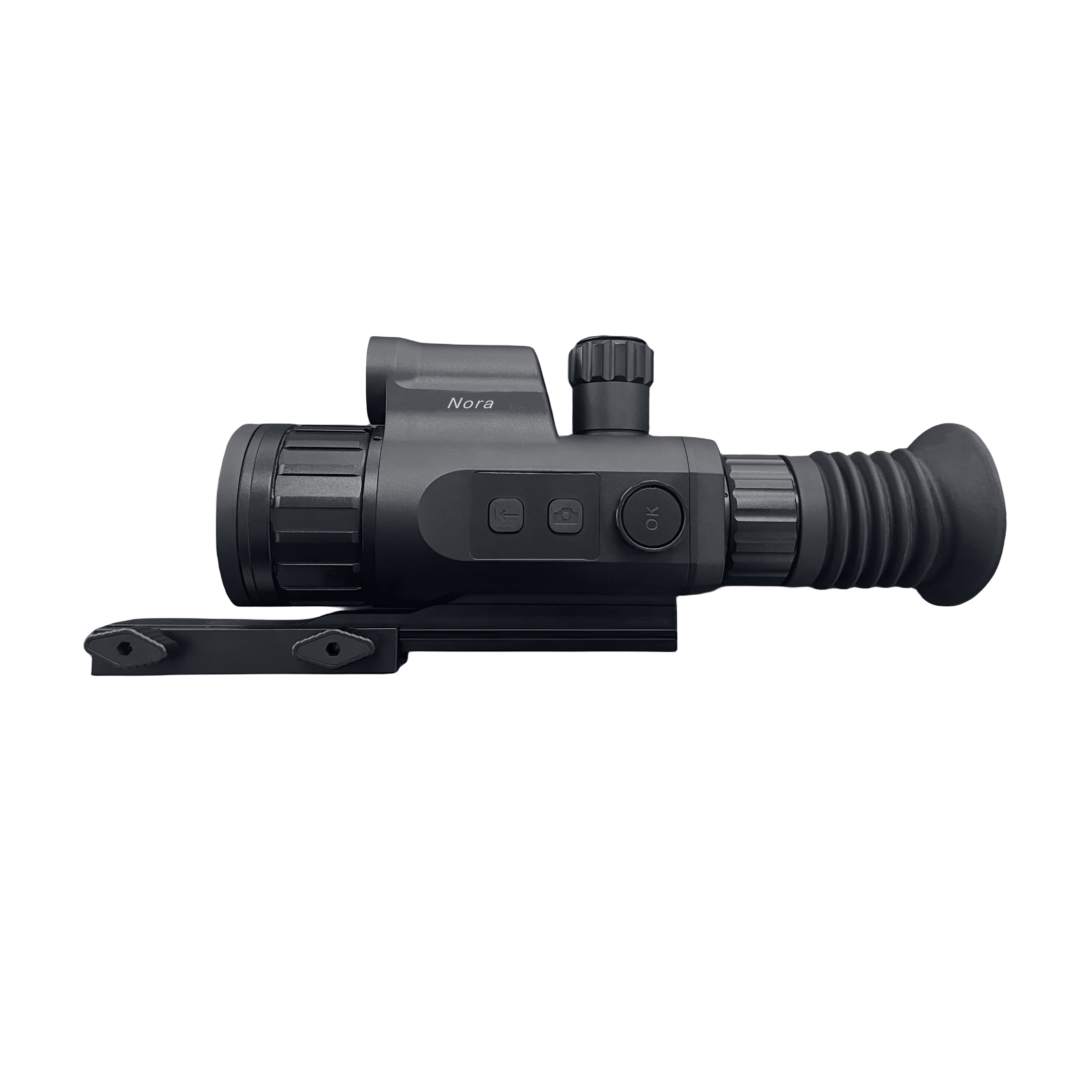

TA-612 Infrared Rifle Sight | Thermal Imaging Scope for Tactical Use
-
Product Description
The Nora TA-612 thermal imaging scope creates images by detecting infrared radiation naturally emitted by objects. Any object with a temperature above absolute zero continuously emits infrared energy, with variations in intensity and wavelength depending on temperature differences.
The thermal imaging system captures this radiation distribution across the surface of a target and converts it into electrical signals. These signals are then processed and rendered into a clear, visible thermal image on the display.
Unlike traditional optical devices, the TA-612 is not dependent on ambient light, allowing it to perform reliably in complete darkness, dense fog, smoke, and other challenging environmental conditions. Its passive imaging capability also provides strong concealment, as it does not emit visible light, making it difficult to detect during operation.
Product features:
1. Supports photo and video evidence collection functions, and can record video images for a long time;
2. Built-in laser ranging module, supports 2000m laser ranging, with high ranging accuracy;
3. Long standby time, built-in rechargeable battery, continuous working time can reach 8 hours;
4. Small and light, low power consumption, simple operation, light and portable appearance structure, ergonomic structure;
5. Fast start-up, simple operation, compact and stable structure, protection level IP67;
Application areas:
Can record and take pictures, can record and restore the scene, can be used in patrol, law enforcement, search and rescue, drug and smuggling, prisoner pursuit and other scenes. It is suitable for special forces such as public security, armed police, and the military to achieve effective all-weather observation of specific areas or targets, and quickly discover, identify, and track targets of concern; it is also suitable for industries such as fire protection, electricity, and petroleum to achieve day and night monitoring of specific areas or equipment.
Technical Specifications
Model Number Nora TA-612 Sensor Type VOx Uncooled Sensor Resolution 640×512 Pixel Pitch 12μm NETD ≤40mk Frame Frequency 50Hz Objective Lens 42mm Angle of View 10.4°×8.3° Continuous Digital Zoom 2.4X~19.2X Eye Relief 48mm Diopter of Eyepiece ±4 Display type OLED Color Palette White Hot/Black Hot/Ironbow/Glowbow/Sepia/Red Hot/Green Hot Detection Distance 2000m (Human, 1.8m) Adjust Accuracy 0.18mil Adjust Range 87.07×69.72mil Reticle Type 10 types Video Resolution 1024×768 Video Format avi Built-in Memory 32GB Wireless Protocol Wi-Fi Wireless Standard 802.11b/g/n Frequency 2.4GHz Connection range 10m Battery Type 18650 Battery×2 Capacity 6400mAh Operating time ≥10hrs. Max. Recoil power on rifles 6000J Shock resistance on the smooth-bore rifles 12 Mounting rail type Picatinny Body Material Aluminum alloy Weight 760g (Mount & Eyeshade excluded) Length 182mm (Mount & Eyeshade excluded) Degree of Protection, IP code IP67 Operating Temperature -25℃～+50℃ Storage Temperature -40℃～+60℃
