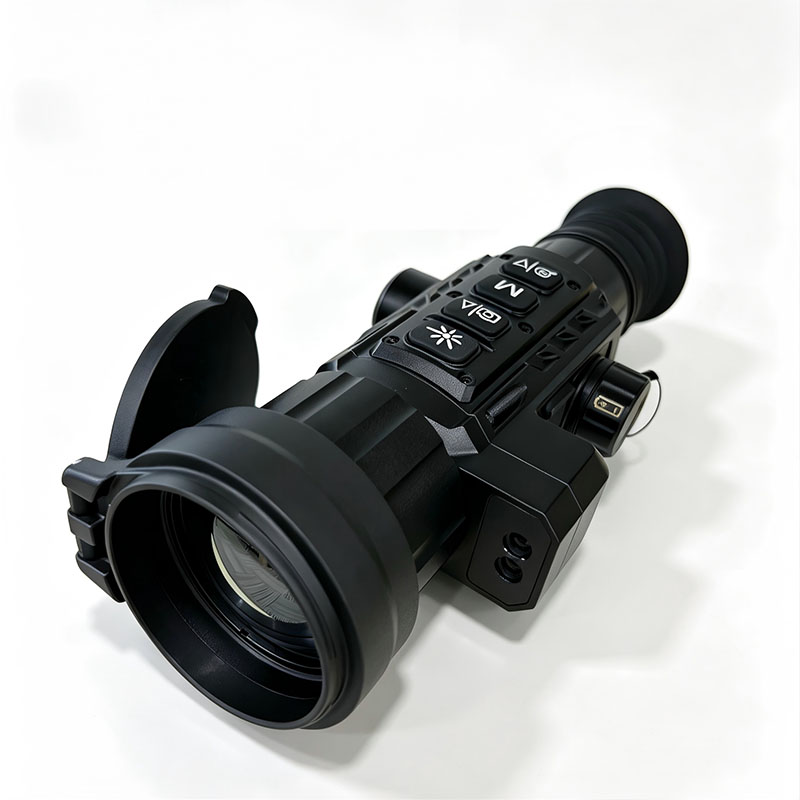

Nora RM-47R Infrared Thermal Imaging Sight for Tactical, Hunting, and Professional Target Acquisition
-
Product Description
The Nora RM-47R Infrared Thermal Imaging Sight is equipped with a high-performance 640 × 512 @ 12 μm VOx uncooled infrared detector, delivering exceptional thermal imaging performance with a NETD ≤20 mK. Its high thermal sensitivity enables rapid detection of subtle temperature differences, providing clear and reliable thermal images in complete darkness, smoke, fog, and other low-visibility environments.
The RM-47R supports eight color palettes, Wi-Fi wireless transmission, photo and video recording, digital zoom, defective pixel correction, and an electronic compass, making it an ideal solution for professional applications such as outdoor observation, security surveillance, industrial inspection, firefighting, and emergency rescue.
Key Features
High-Resolution Thermal Imaging
Features a 640 × 512 VOx uncooled infrared detector that delivers sharp, high-definition thermal images for precise target observation.
High Thermal Sensitivity
With a NETD ≤20 mK, the RM-47R accurately detects even the smallest temperature differences for enhanced target recognition.
Eight Color Palettes
Supports White Hot (WH), Black Hot (BH), Fusion, Red Hot (RH), Green Hot (GH), Sky, Orange (ORG), and GO display modes, allowing users to optimize image presentation for different environments and operational requirements.
Wi-Fi Wireless Connectivity
Built-in Wi-Fi enables fast wireless transmission of images and videos to compatible mobile devices for convenient viewing and sharing.
Versatile Functions
Supports photo capture, video recording, digital zoom, and defective pixel correction, providing greater flexibility and ease of operation in the field.
Built-in Electronic Compass
Integrated electronic compass provides real-time directional information, enhancing navigation and situational awareness during outdoor missions.
Applications
Security & Surveillance
Ideal for night patrols, perimeter security, border surveillance, and law enforcement, enabling rapid target detection in total darkness and other challenging environments.
Firefighting & Rescue
Assists firefighters and rescue teams in locating people, identifying heat sources, and navigating through smoke-filled, high-temperature, or dark environments.
Industrial Inspection
Suitable for electrical inspections, equipment maintenance, mechanical diagnostics, and predictive maintenance, helping improve operational efficiency and reduce downtime.
Outdoor Observation
Perfect for wildlife observation, outdoor exploration, nighttime monitoring, and search operations, delivering reliable thermal vision in all lighting conditions.
Emergency Response
Provides rapid heat-source detection for disaster response, search-and-rescue missions, and emergency operations in complex environments.
Nora RM-47R 技术参数表 S/N Parameters Qualitative Requirements 1 Technology Un-Cooled Thermal Detector 2 Reticle Pattern The sight should have a reticle pattern that enables aiming and range estimation for 7.62 mm x 39 mm calibre weapon from 100 m to 500 m with pattern marking at an interval of 100 meter visible in both white hot and black hot polarity. 3 Zeroing The sight should have a suitable arrangement for zeroing. The zeroing should not get disturbed post firing / particular engagement. 4 Detector Resolution (FPA) (FPA)Not less than 640 x 480 FPAs, pitch less than or equal to 17 microns 5 Field of view without Optical and Electronic Zoom 8° (Azimuth) and 6° (Elevation) 6 Electronic Zoom Upto 4X 7 Image Polarity White Hot and Black Hot 8 Maximum turn on time <3 second 9 Power on/off switch to be provided 10 Detection of Single Moving Human Target Minimum 500m 11 Recognition of Single Standing Human Target. Minimum 300 m 12 Power supply - Battery type The sight should operate on removable rechargeable batteries. 13 Power supply - Battery recharge cycles Minimum number of recharge cycles to be 500 (Accredited Certification). 14 Power supply - Charging arrangement Arrangement for recharging batteries by AC/DC source. 15 Power supply - Alkaline battery compatibility The sight should also function for minimum 30 minute by using one set of commercially available indigenous Alkaline batteries in the same housing when required by user 16 Power supply - Battery status indicator Low Battery Indicator. Battery status display and low battery indicator must be provided. Battery should have auto cut off when fully charged and while switching ON/ OFF, the sight should not emit stray light to indicate own position. 17 Weight Weight of sight with batteries and sight mount adapter should be less than 900 gram +10%. 18 Colour The sight should be black/ OG in colour. 19 Carriage and Transportation The sight should be provided with separate cases for carriage and a hard case for transportation. (Drop test will be carried out). 20 Environmental and durability Test (i) MIL-810H. (ii) Testing/ Eval of Ruggedness. 'Drop Test & Water Resistance Test' will be conducted Physically. 21 Operating Temperature Minus (-) 20º to Plus (+) 40°. Physical 22 Sight Usage Counter Sight usage time to be recorded by providing a counter. 23 EMI/EMC Standards The sight should meet requisite EMI/EMС standards (MIL Standards 461F) 24 Controls 13.1 Power on and off. 13.2 Brightness and Contrast. 13.3 White Hot and Black Hot selection. 13.4 Zoom In/Out. 25 Carriage and transportation 14.1 Ruggedized shock proof case compliant to IP-67 / Military Standard 810 H. 14.2 Waterproof soft carry case should be provided with each sight.
