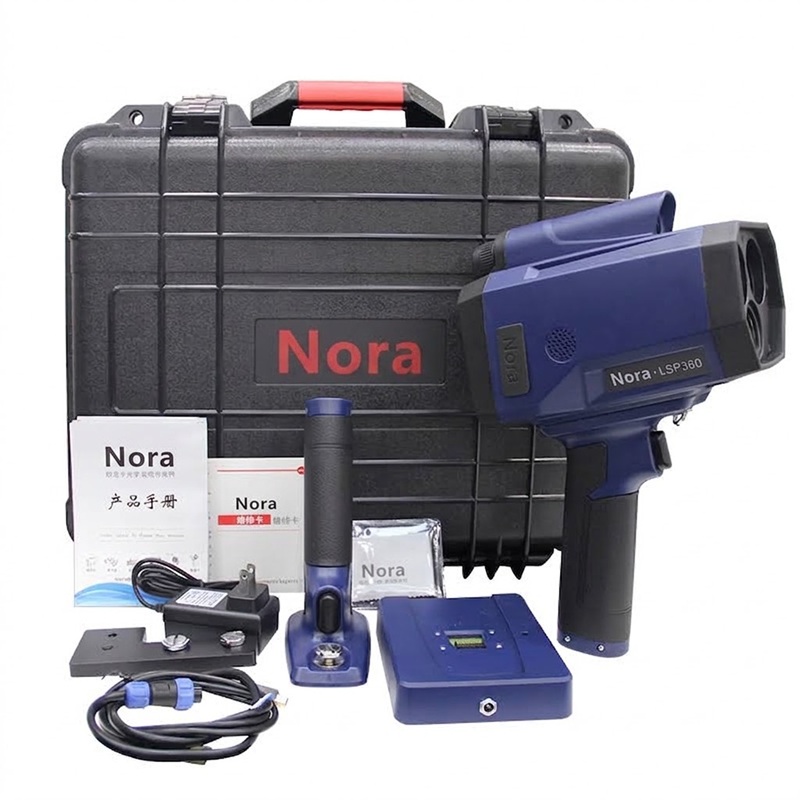

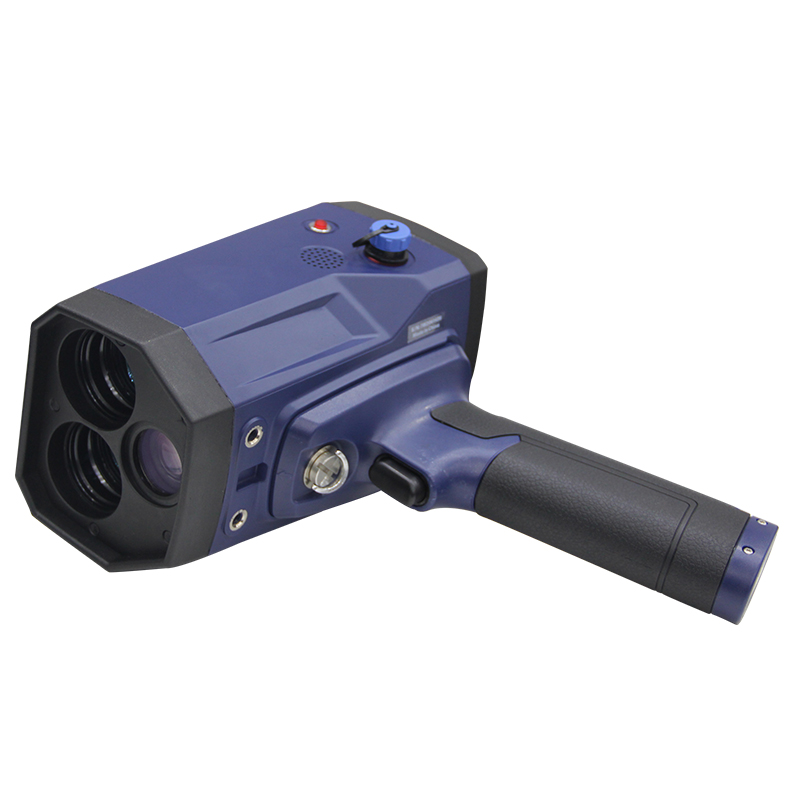

LSP360 Laser speed gun
-
Product Description
The Nora LSP360 Handheld Laser Speedometer is an ultra-portable laser speed measurement and video recording system that integrates advanced laser ranging, speed measurement, and digital imaging technologies. Designed for professional speed detection and evidence collection, it can simultaneously measure the real-time speed and distance of moving vehicles while capturing high-quality images and recording dynamic video.
With its compact and lightweight design, the LSP360 provides a convenient solution for mobile speed measurement in traffic enforcement, highway monitoring, outdoor operations, sports events, and other professional applications. Its integrated imaging and data-recording capabilities enable users to efficiently document speeding vehicles and retain visual evidence for subsequent analysis and management.
Key Features
- 4.3-Inch Color Touchscreen – Provides a clear, intuitive interface for convenient operation and real-time data viewing.
- Class 1 Eye-Safe Laser – Uses a Class 1 laser system designed for safe professional operation.
- High-Speed Measurement – Supports speed measurement up to 320 km/h with speed accuracy of ±1 km/h.
- Precise Distance Measurement – Provides distance measurement accuracy of up to ±0.15 m.
- Integrated Image & Video Recording – Captures still images and records dynamic video of speeding vehicles for evidence collection and documentation.
- GPS Positioning – Built-in GPS supports location information for professional field applications.
- Voice Prompts – Provides convenient audio guidance and operational feedback.
- Large Storage Capacity – Supports up to 64GB SD cards for storing images and video records.
- Multiple Data Interfaces – Equipped with an RS232 serial communication port and USB 2.0 for image and data transmission.
- Dual-Band Wi-Fi – Supports 2.4GHz and 5GHz Wi-Fi for convenient wireless data transfer.
- Compact & Lightweight Design – Easy to carry and operate during extended outdoor use.
- Reliable Long-Term Operation – Designed for high sensitivity, stable performance, and continuous professional applications.
Applications
The Nora LSP360 Handheld Laser Speedometer is suitable for a wide range of professional speed measurement and monitoring applications, including:

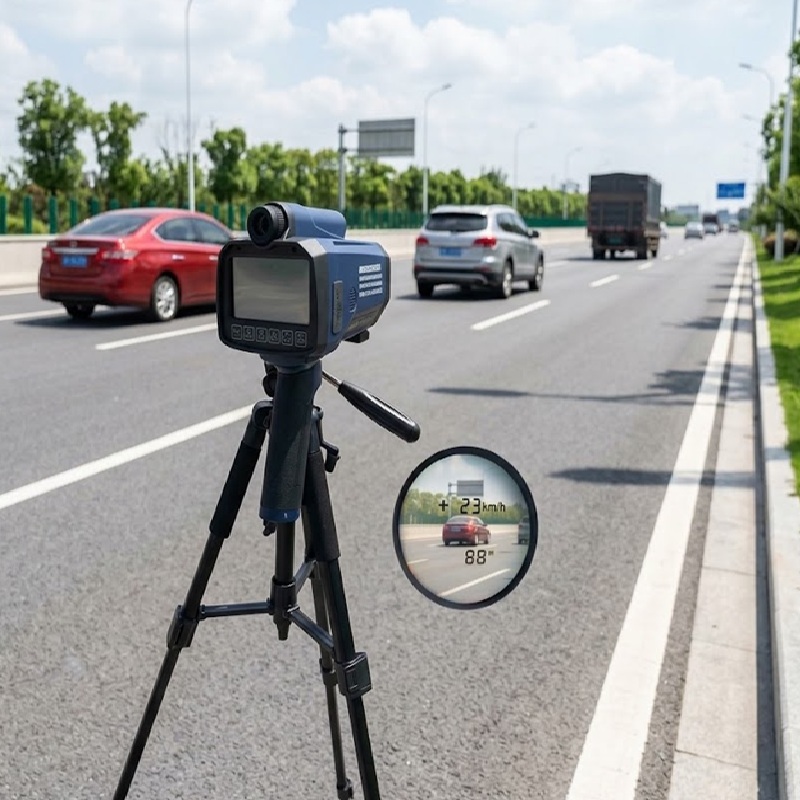

- Traffic speed enforcement
- Highway speed monitoring
- Road safety management
- Industrial and factory area monitoring
- Outdoor speed measurement
- Sports competitions and training
- Military and police technology applications
- Professional field operations
- Speeding vehicle evidence collection
Professional Speed Measurement in a Compact Design
Combining laser speed measurement, precision ranging, digital imaging, GPS, and video recording in a single handheld device, the Nora LSP360 offers an efficient solution for professionals who require accurate speed detection and reliable visual evidence. Its compact design and versatile connectivity make it suitable for demanding mobile and outdoor environments.
Technical Specifications
Product Model LSP360 Optimal focusing distance 70 meters (230 feet) Optimal operating range 15-150 meters Speed measurement accuracy ±1km/h Speed measurement range 0km/h~320km/h Distance measurement accuracy ±15cm Speed measurement display resolution 1km/h; Distance display resolution 0.1m; Minimum speed measurement distance measuring mode ≤10 meters, weather mode 60 meters (automatic software recognition) The longest distance range speed measurement mode can reach 600-700 meters; Distance in mode 1200 meters Speed measurement time 0.33-0.67 seconds Speed measurement unit kilometers per hour/miles per hour/meters per second Distance measurement unit meter/foot/yard Laser wavelength 905 nm Capbility Laser beam divergence 2.5 milliradians Eye Safety FDA Class1 (CFR21) Body weight 1.75kg Size 197X124X316mm Environment IP65 water/dust proof Mechanical structure Operating temperature -10~+60ºC (14~140ºF) Charging temperature 0~+45ºC (32~113ºF) Storage temperature -20~+60ºC (-4~140ºF) Processor huawei Hisilicon ji3519AV100 Capture data storage Removable SD card, support 64GB, optional 3G or 4G, sim card SD file system format MS-DOS (FAT16, FAT32) Linux (EXT2, EXT3) Display 4.3 inches (10.9 cm), 800x480 pixels, color, touch screen Camera SONY 5 million HD industrial CCD camera Hardware Camera lens 75 mm, fixed focus GPS Dedicated Beidou &GPS dual mode positioning module Real-time clock Supported Receiving channel 20 Maximum update speed 1Hz Maximum height 18,000 m (59,000 ft) Maximum speed 515 m /s (1689ft/sec) Sensitivity Acquire -142dBm, track -159dBm Obtain time Hot start 1 second Cold start Less than 60 seconds Retrieve < 1.5 seconds Accuracy Horizontal position Average 5 m (7.2 ft) Hardware Max. 10 m (32.8 ft), spontaneous; 5 m (16.4 ft), SBAS correction Vertical position average 0 m (0 ft); Maximum 15 m (49.2 ft); Horizontal speed 0.1 m/s (0.3 ft/s); Time accuracy Real-time clock CR3032 backup battery 20PPM, can also be used for 3 years without battery pack Input/output (I/O) RS232 serial communication port; USB2.0 image data transmission; Resistive touch screen input; Button input (including trigger); WIFI 2.4G&5G Battery pack 7.4V DC, lithium polymer rechargeable battery pack, short circuit, overcharge protection, provides 5-7 hours of operation Battery charger 110vac~240vac 50/60Hz input Work Rate Power consumption 5 watts Operating system Linux operating system, custom device drivers Anti-jamming Automatic anti-jamming Video size Standard format, 640X480 pixels Still image size 2560x1920 pixels Software Maximum record size unlimited, memory dependent Data encryption AES-128 Measurement mode Continuous, lock, automatic, video tracking mode, ranging mode,video mode Voice prompt Speed and voice synchronization Languages English, Chinese Others Tripod Support (normal camera tripod interface) List Carrying case, host, battery handle *2, charging base, charging head, serial port output cable, tripod converter, manual, mirror wipe, warranty card,
