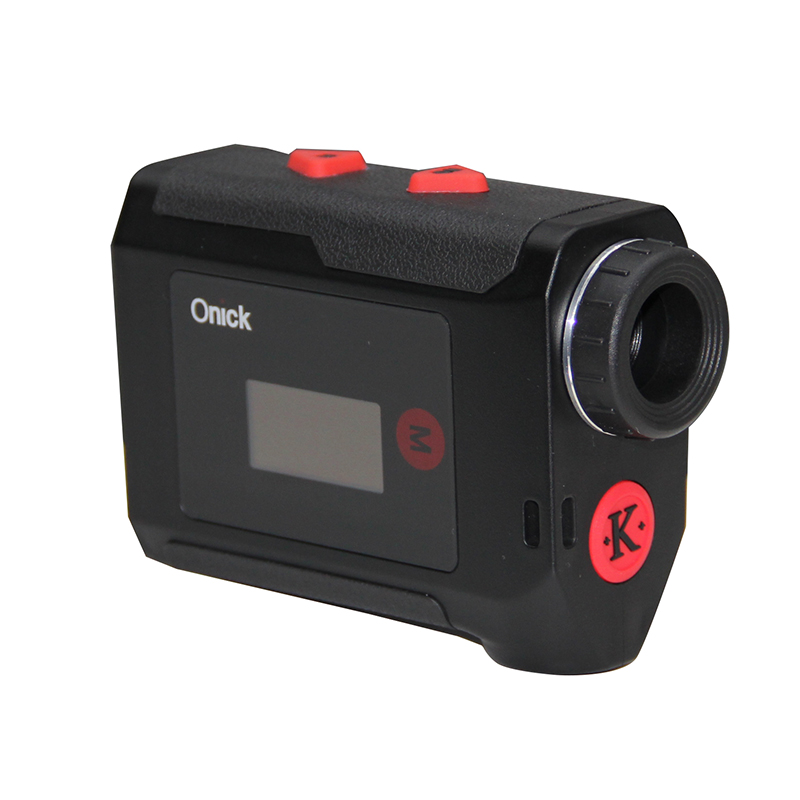

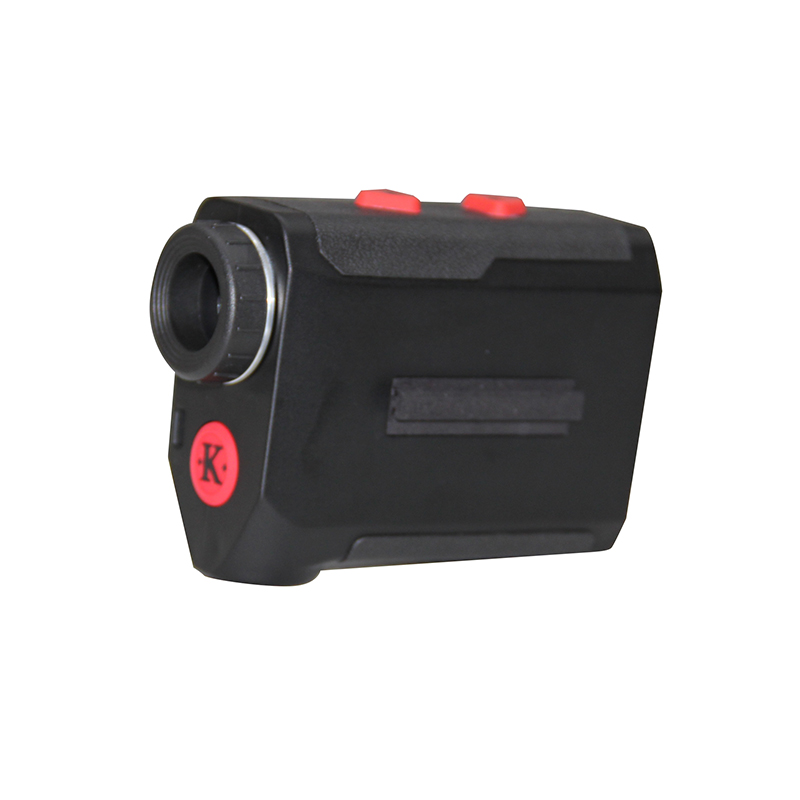

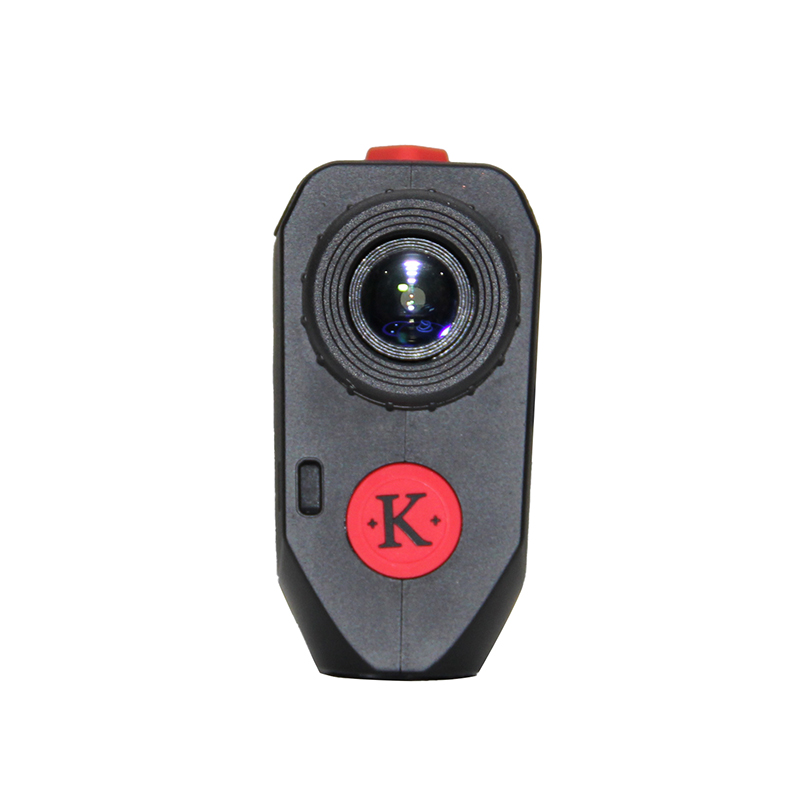

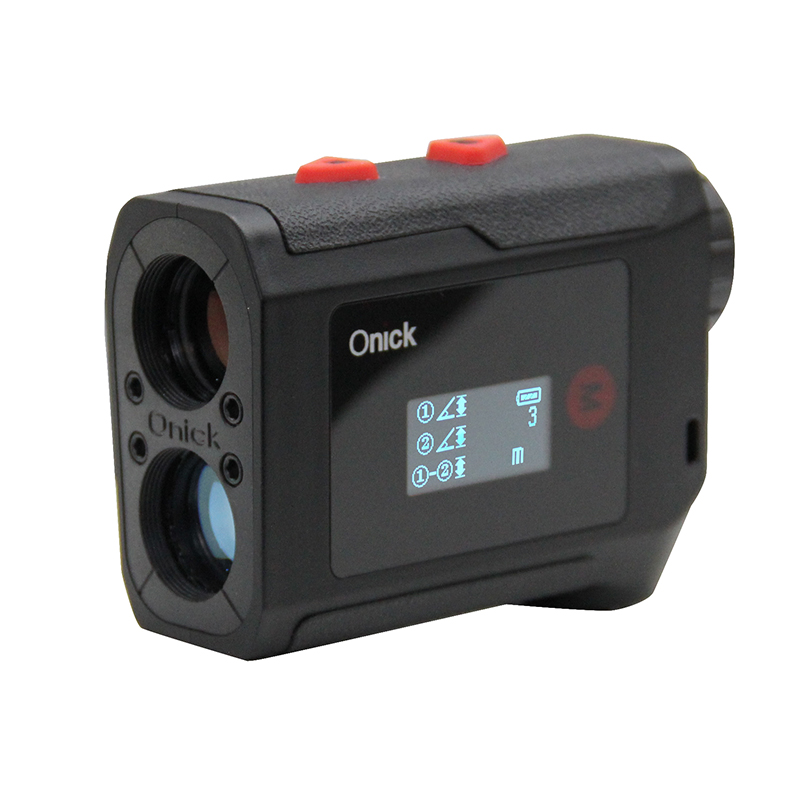

3000AS Multifunctional Rangefinder with Beidou Color Touchscreen
-
The Onick 3000AS laser rangefinder integrates the functions of a telescope, laser rangefinder, and rangefinders for measuring altitude, angle, speed, and even golf. It features BeiDou positioning and satellite time display. While clearly observing objects, the 3000AS laser rangefinder can measure the distance, height, angle, and speed of objects within a certain range. The instrument boasts dual displays—one inside the eyepiece and one on the external OLED screen—and offers advantages such as high ranging accuracy, short measurement time, intuitive distance display, low power consumption, and automatic power-off. New additions include a rectangular area measurement mode, a volume measurement mode, and a back-mounted infrared rail, allowing for nighttime ranging with a flashlight, thus broadening its application range.
Product Features:
1. Integrates distance measurement, height measurement, angle measurement, area measurement, and volume measurement;
2. Features dual data display, an external color LCD touchscreen, and multiple operation methods;
3. 0.2-meter accuracy, high distance measurement precision, short measurement time, and intuitive distance display;
4. Nine measurement modes: distance measurement, height measurement, angle measurement, horizontal distance measurement, golf mode, speed measurement, area measurement, volume measurement, BeiDou positioning, and satellite time;
5. Back-mounted infrared rail allows for nighttime distance measurement with a flashlight, broadening its application range;
6. Clear blue screen display. Suitable for use in low-light environments;
7. Sensitive measurement, clear target, simple and stable operation;
Applications:
Power line surveying and design, power safety inspection, forestry survey, security and police work, geological exploration, hunting, railway construction surveying, installation surveying, high-rise building monitoring, high-speed passenger line track construction, water conservancy and hydropower surveying, river surveying, geology, police work, fire protection, navigation, railway, agriculture, forestry, golf courses, outdoor recreation, counter-terrorism, oil pipelines, archaeological research, mine surveying, railway alignment, land and resources surveys, etc.Technical parameter
Maximum distance measurement 3km Distance measurement accuracy ±0.2m Resolution 0.1m Angle measurement function Yes Angle measurement range ±90° Angle measurement accuracy ±1° Single point altitude measurement Yes Speed measurement function Yes Speed measurement range 0-300KM/H Speed measurement accuracy ±3KM/H Two point altitude measurement Yes Golf mode Yes Horizontal measurement Yes Area measurement Yes Volume measurement Yes BeiDou positioning Yes, displays latitude and longitude Time display Real-time satellite Beijing time displayed on external screen Bluetooth transmission Yes Scanning function Yes Laser type Class I eye-safe laser Data storage 50 sets Low voltage warning Yes Magnification 8X Objective lens diameter 24mm Eyepiece aperture 17mm Exit pupil diameter 3.9mm Field of view 7° Diopter adjustment range ±4 diopters Product weight Approx. 200g Display Built-in LCD, external OLED screen Battery type CR2/3.7V rechargeable battery Operating temperature -10℃ to 50℃ Focusing method Manual eyepiece focusing External rail A fixed rail is located on the side of the main unit, with a quick-release mounting bracket. A flashlight can be inserted into the mounting bracket. Tripod Interface Standard Dimensions 110x50x85mm Measurement Modes Distance and Angle Measurement, Single-Point Altitude Measurement, Two-Point Altitude Measurement, Horizontal Distance Measurement, Golf Mode, Speed Measurement, Area Measurement, Volume Measurement, BeiDou Positioning, Satellite Time Battery Type CR2-3V Lithium Battery Package List Rangefinder, Carrying Case, CR2-3V Battery *1, Lanyard, Cleaning Cloth, Instruction Manual, Warranty Card, Color Box
