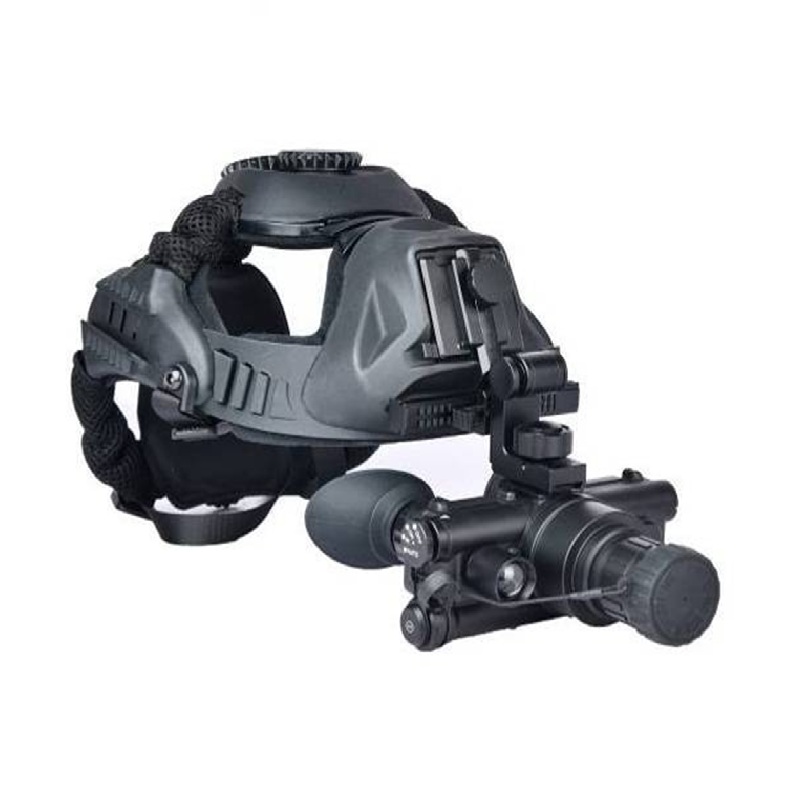

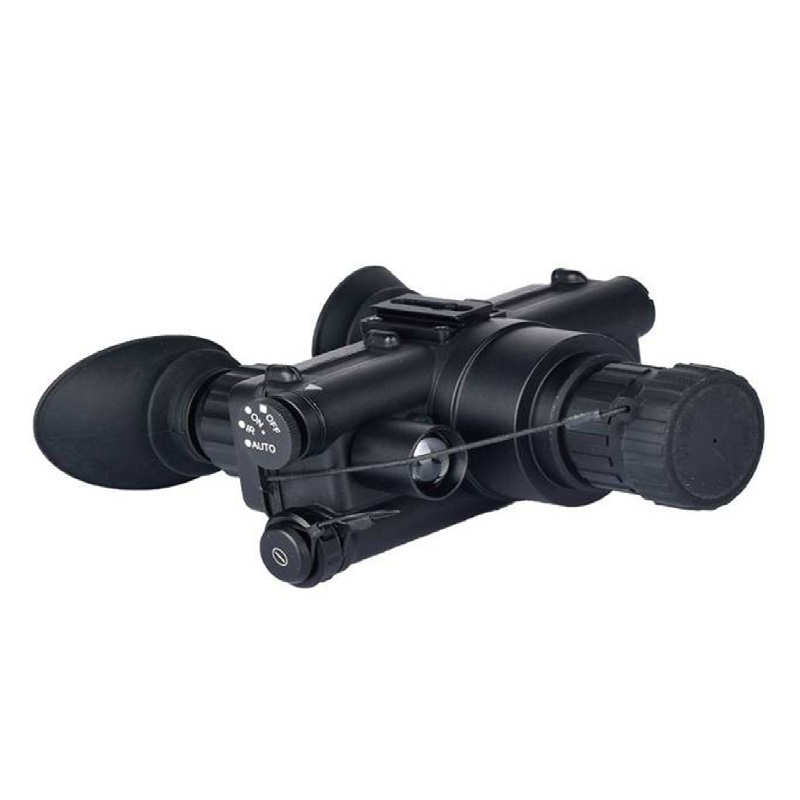

Nora NVG-NH9X Gen 2/Gen 3 Dual-Eye Monocular Night Vision Goggles for Tactical and Low-Light Operations

Discover the Nora NVG-NH9X Gen 2/Gen 3 Dual-Eye Monocular Night Vision Goggles, featuring advanced image intensifier technology, high-resolution low-light imaging, and thermal fusion compatibility. Designed for tactical operations, security, hunting, and outdoor observation, the NVG-NH9X delivers reliable visibility in extreme darkness with superior performance and durability.

Product Description:

Nora NVG-NH9X Multifunctional Low-Light Night Vision Device is a new-generation professional night vision system developed based on advanced electro-optical imaging technology. Equipped with high-performance Gen 2/Gen 3 image intensifiers, the device delivers outstanding sensitivity, high-definition imaging, low power consumption, and a lightweight design, providing clear and stable nighttime observation capabilities in extremely low-light or complete darkness environments.

The NVG-NH9X adopts a dual-eye monocular configuration with adjustable interpupillary distance to meet the requirements of different users. By replacing objective lenses or attaching magnification accessories, the device can achieve flexible magnification options, making it suitable for various applications including close-range observation and long-distance target identification.

The device features an integrated digital video acquisition system, enabling real-time image capture, video output, and remote transmission during nighttime operations and zero-light conditions. This allows users to achieve visualized command, coordinated operations, and efficient information sharing in dark environments. In addition, the NVG-NH9X integrates an infrared illuminator, red warning indicator, and automatic bright-light protection system to enhance operational safety and reliability in complex environments.

With its exceptional night vision performance, flexible expansion capability, and wide range of applications, the Nora NVG-NH9X is ideal for tactical operations, security protection, field reconnaissance, night patrol, law enforcement, and low-light environment observation.

Technical Specifications

Model	NVG-NH921	NVG-NH931
Image Intensifier Grade	Gen 2+	Gen 3
Magnification	1X	1X
Resolution	58-64 lp/mm	64-72 lp/mm
Photocathode Type	S25	GaAs
Signal-to-Noise Ratio (dB)	18-24	25-30
Optical Sensitivity (μA/lm)	600-800	800-1000
Mean Time Between Failures (Hours)	10,000	10,000
Field of View (°)	42±3	42±3
Observation Range (m)	180-220	250-300
Adjustable Interpupillary Distance (mm)	65±5	65±5
Eyepiece Diopter Adjustment Range (D)	-1	-1
Lens System	F1.2, 25mm	F1.2, 25mm
Optical Coating	Multi-layer broadband ultra-vacuum ion anti-reflection coating	Multi-layer broadband ultra-vacuum ion anti-reflection coating
Objective Focus Range (m)	0.25–∞	0.25–∞
Automatic Bright Light Protection	High-sensitivity, ultra-fast, broadband detection	High-sensitivity, ultra-fast, broadband detection
Flip Detection	Fully solid-state non-contact automatic posture recognition	Fully solid-state non-contact automatic posture recognition
Dimensions (mm) (Without Eyecup)	124×126×56	124×126×56
Product Material	Full aviation-grade aluminum alloy	Full aviation-grade aluminum alloy
Weight (g) (Without Battery)	342g (Housing) / 391g (Complete Unit)	342g (Housing) / 391g (Complete Unit)
Operating Voltage (V)	2.6-4.2V	2.6-4.2V
Battery Type	2×AA Batteries	2×AA Batteries
Infrared Auxiliary Light Wavelength (nm)	850	850
Red Warning Light Wavelength (nm)	808	808
Video Acquisition Power Supply (Optional)	External Power Supply 5V 1W	External Power Supply 5V 1W
Video Resolution (Optional)	Video 1Vp-p SVGA	Video 1Vp-p SVGA
Continuous Operating Time (Hours)	80 (IR Off) / 40 (IR On)	80 (IR Off) / 40 (IR On)
Operating Temperature Range (℃)	-40 to +50	-40 to +50
Relative Humidity	5%-98%	5%-98%
Dustproof & Waterproof Rating	IP65 (IP67 Optional)	IP65 (IP67 Optional)
