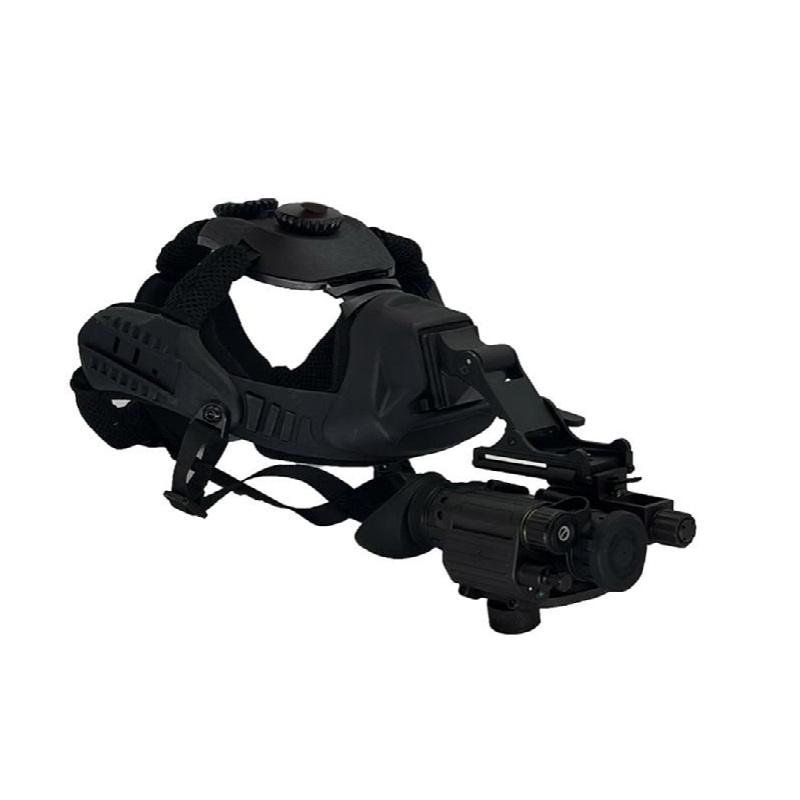

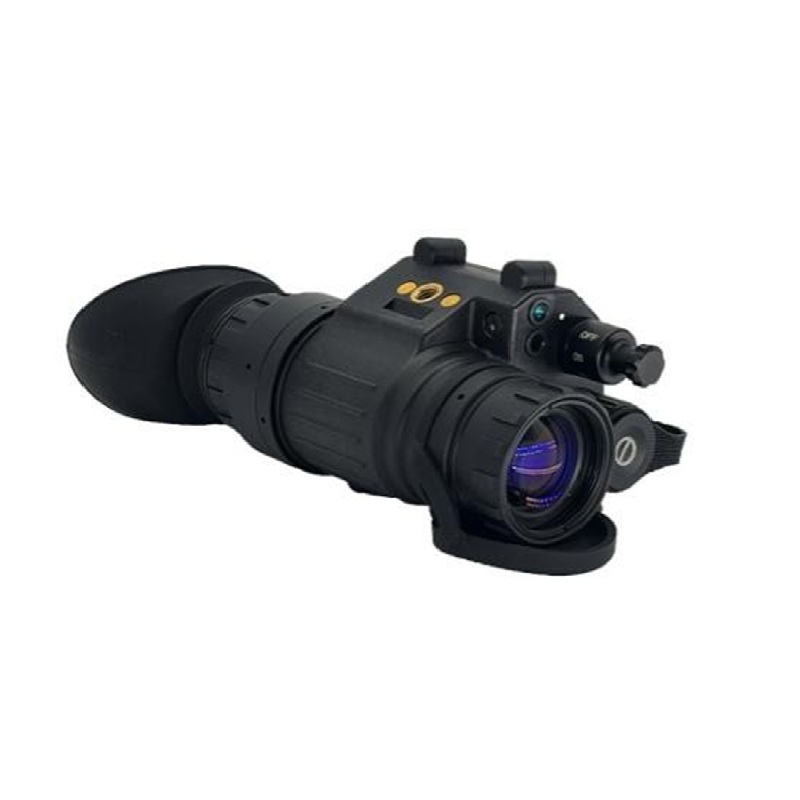

Nora NVG-14 Single-Tube Monocular Night Vision Device for Tactical, Hunting, and Low-Light Outdoor Observation
-
Nora NVG-14 multi-functional monocular low-light night vision device is developed based on advanced photoelectric technology and features a newly designed optical system with a 50° field of view, providing a wider observation range and a more stable low-light visual experience.
The device is equipped with a large eyepiece aperture and an extended eye relief distance, significantly improving viewing comfort and image stability. It delivers high-resolution, finely detailed imaging while combining a wide field of view with a lightweight design. The unit is compact, lightweight, and suitable for long-duration wear and use.
The operation interface is simple and intuitive, offering a high cost-performance advantage. It also supports the use of a magnifier lens to flexibly adjust magnification, meeting different operational requirements in various scenarios.
Built-in infrared auxiliary illumination allows clear visibility in complete darkness, while an automatic bright light protection system effectively prevents damage to the image intensifier tube, improving device safety and service life.
This product has a wide range of applications in fully unlit nighttime environments, including outdoor hunting, wilderness exploration, anti-theft patrols, maritime operations, and night-time engineering work. It is an ideal optical device for professional night observation and outdoor activities.
Technical Specifications
Model NVG-14 Image Intensifier Tube Grade Gen 2+ / Gen 3 low-light image intensifier tube Magnification 1X Resolution 57–64 / 64–72 lp/mm Photocathode Type S25 / GaAs Signal-to-Noise Ratio (SNR) 15–23 dB / 23–28 dB Photocathode Sensitivity 700 / 1000 μA/lm Mean Time Between Failures (MTBF) 10,000 hours Field of View 40° ±2° (50° optional) Detection/Observation Range 280 m Objective Focus Range 0.25 m – ∞ Focusing Method Manual Eyepiece Diopter Adjustment Range -6 to +4 / -4 to +6 (adjustable) Objective Lens Aperture F1.18, 25 mm Optical MTF 120 lp/mm Optical Axis Alignment <0.5° Optical Distortion <0.5% Relative Illumination >75% Eye Relief Distance 25–45 mm (full field of view) Eyepiece Diameter 30 mm Exit Pupil Diameter 9 mm Optical Coating Broadband multi-layer anti-reflection coating Brightness Gain Control Automatic gain / manual gain (optional) Bright Light Cut-off Protection Automatic Flip-up Detection Automatic shut-off when flipped up (magnetic sensor, no gravity switch required) Structure Type Left/right flip-up monocular single-tube design Mounting System Head-mounted (standard FST helmet interface) Control Modes ON / IR / AUTO (three operating modes) Power Consumption <0.1 W Battery Capacity 400–800 mAh Battery Type CR123x1 lithium battery / AAx1 (No.5 battery) Operating Voltage AA battery1.2–1.6V / Lithium battery2.4–4.2V Continuous Working Time IR mode up to 40 hours, low-light mode up to 80 hours Auxiliary IR Illuminator 850 nm, 20 mW Operating Temperature -40°C to +55°C Relative Humidity 5%–95% Water/Dust Resistance IP65 (IP67 optional) Dimensions 112 × 64 × 45 mm (excluding eyecup) Housing Material High-strength, heat-resistant aviation-grade engineering plastic Weight 240 g (without battery)
